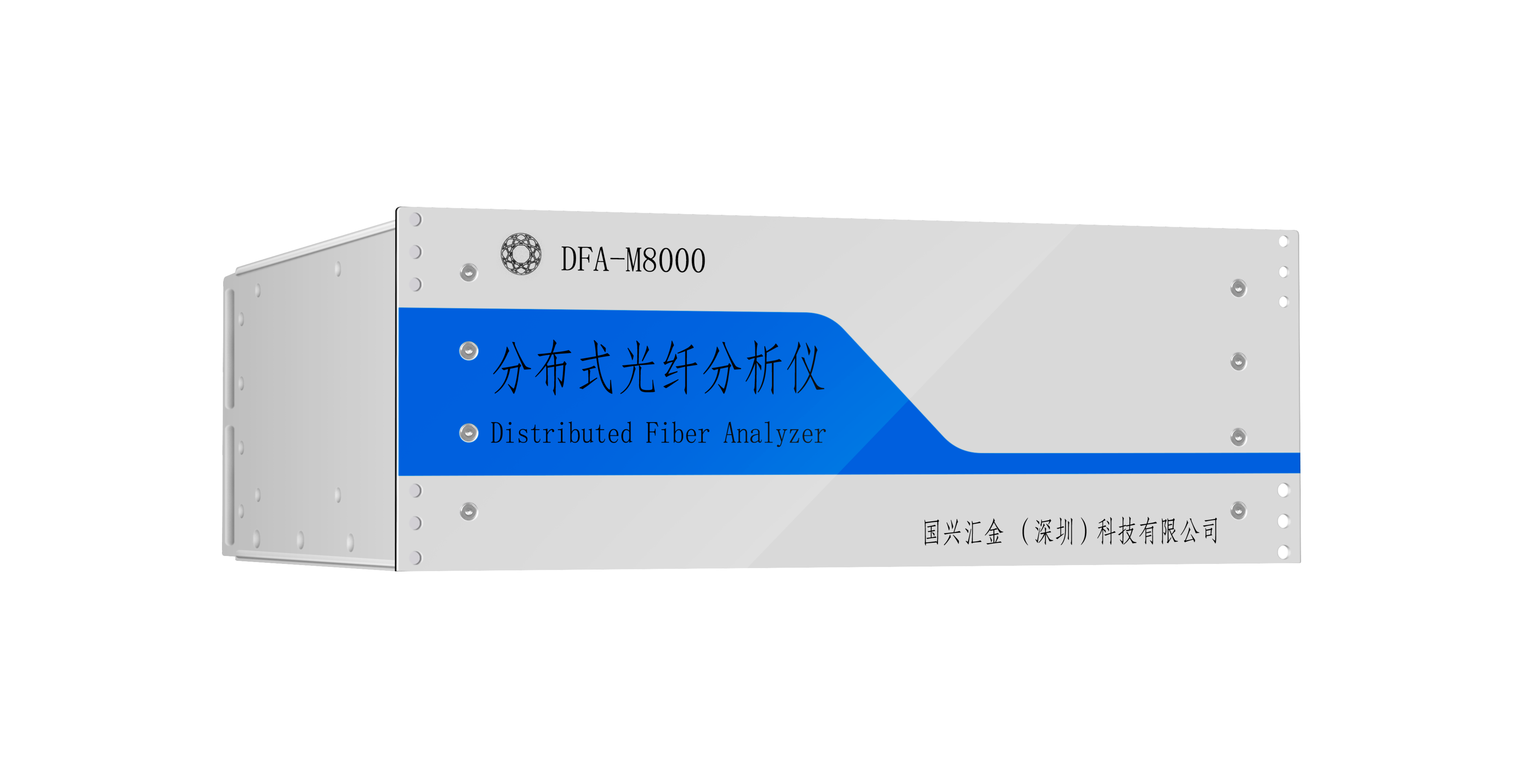

Distributed Fiber Amalyzer DFA-M8000
Product Introduction
Specifically designed for oil and gas production monitoring, the DFA-M8000 servesas a sensitive "nerve" along oil and gas production pipelines. Utilizing distributed fiberoptic sensing technology, it provides comprehensive and high-precision real-time temperature monitoring throughout the entire wellbore. Whether in vertical wells with significant temperature changes or horizontal wells with subtle variations, the DFA-M8000 captures every detail, ensuring safe and efficient production operations.
Product Features
- Highly reliable modular system design.
- Loop length up to 5 km and single-channel length up to 10 km.
- Sampling intervals of 0.25 m and 0.5 m available.
- Spatial resolution of 1.0 m.
- Supports combined measurement of standard and high-temperature fibers.
- Flexible system networking modes.
- Industrial standard output interfaces.
- Suitable for harsh working environments
- Customizable system requirements.
Application Fields
- Single logging in oil and gas wells.
- Permanent logging in oil and gas wells
- Downhole temperature monitoring
- Pipeline integrity monitoring in gas storage facilities
- Oil and gas pipeline integrity monitoring
Technical Specifications
- Data Acquisition
- Spatial Resolution1m
- Sampling Intervals0.25m / 0.5m
- Temperature Measurement Range-40℃ ~ 300℃
- Temperature Measurement Accuracy≦±0.15℃
- Temperature Resolution≦ 0.3℃@30s，10km
- Maximum Length10km
- Number of Channels2/4/8
- Optical
- Fiber Type50/125 μm MMF
- Interface TypeE2000 APC
- Laser Wavelength1064nm
- Chassis
- Specifications4U
- Instrument Dimensions175 x 450 x 530 mm
- Material16kg
- MaterialMetal
- Transport Box Dimensions225 x 600 x 680 mm
- Transport Weight35kg
- Environmental
- Operating Temperature-20°C ~ 40°C
- Operating Humidity< 95% RH Non-condensing
- Storage Temperature-40°C ~ 65°C
- Storage Humidity< 95% RH Non-condensing
- Electrical and Hardware Interfaces
- Power Supply110 ~ 240 V AC
- Power Consumption25W
- Ethernet Port1x100Mbps
- ModbusMODBUS TCP
- Built-in Storage1TB
- Software
- Software NameDfaStudio
